Less bounce in tree work with Straightpoint

13 October 2016

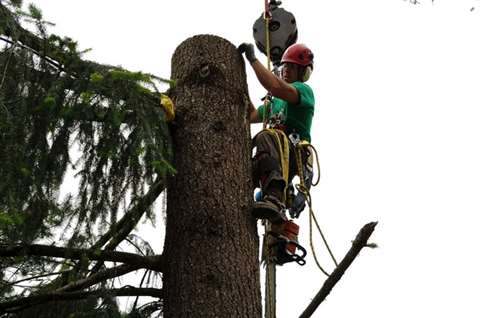

Straightpoint load cells used by a tree service company

Straightpoint load cells used by a tree service company

Arboriculture specialist Lane Tree Doctor uses a wireless load cell when cranes are required to move large and hazardous sections of trees.

The Eugene, Oregon, USA-based company uses the 5 ton Straightpoint Radiolink Plus load cell to help reduce bounce on a crane when heavy pieces of wood are cut from trees.

It is used in combination with rigging equipment and Lane’s 17 US ton capacity boom truck, chosen for its small footprint and ability to be set up closer to the work area than is possible with a larger crane.

Scott Grecian, Lane Tree Doctor owner, said, “Like many small business owners, I seek to maximize the performance of our equipment while working within budgetary constraints. Having accurate weight readings is critical.”

Grecian explained that before each pick is made, the climber communicates to the crane operator how much tension to apply to the line before the cut is made. For example, say a particular piece of tree section is estimated at 1,000 pounds, the line is tensioned to that amount and when it is cut it is found to weigh 900 pounds. The crane operator then communicates this information to the climber, which helps estimate the weight of the next pick.

“There would only be a small amount of ‘pop’ or bounce when the cut is complete,” said arborist Grecian. “The advantage of this approach is that it minimizes shock loading on the crane and allows for greatly improved estimation of the weight of future cuts, especially when dealing with larger trunk wood.”

Accurate weight readings are also useful when removing sections of tree that are heavily angled, between horizontal and vertical inclinations.

“We have found that if a face cut is made on the top side of such a section of wood and the line is pre-tensioned to a given amount — say, 1,000 pounds again — that when the back cut is executed, the line tension will normally begin to drop as the holding wood is cut," Grecian explained. "The climber can than communicate to the operator to ‘line up’ to maintain the initial weight reading. This will have the effect of standing such a section of wood up. The result is a very smooth and predictable movement of the removed section of tree.”

In addition, as the Radiolink plus is wireless, Grecian and his team do not have to consider branch tips snagging with cables, which has been encountered with other technologies leading to costly and time consuming repairs.

“By taking a systematic approach to the disassembly of trees enabled by accurate weight measurements, we routinely are able to tackle tough projects. Reliable and accurate weight readings are the cornerstone to our work," said Grecian.
